The signal isolator has the following characteristics:
● thin volume,low-cost international standards DIN35mm rail mounting
● Multi-port isolation ( input and output isolated from each other )
● Three-channel input and three-channel output, mutual isolation between channels
● through the EU CE certification
● High accuracy (0.1%, 0.2% F.S)
● High linearity (0.1% F.S)
● High isolation voltage (3000VDC/60S)
● Low temperature drift (35PPM/℃)
● Industrial temperature range (-45~+85 ℃)
● Product performance and reliable (MTBF>50 Wan hour)
● Low impedance ( voltage drop<4V, 20mA when )
● Wide input voltage range (7.5~32V)
● International standard signal input and output (4~20mA/0~20mA)
● Product Size : 115x100x23mm
Isolator Application:
● DC current/voltage signal isolation , conversion and amplification
● Analog signal ground interference suppression and analog isolation ,acquisition
● 4~20mA/0~20mA sensor signal isolation , transformation and achieve signal distribution conversion
● instrumentation and sensor signal transceiver
● Two-wire primary/secondary instrumentation and signal isolation and acquisition
● power isolation monitoring industrial field
● Analog signal data isolation,acquisition, conversion,and long-distance transmission
● industrial field signal isolation and conversion,and long-distance transmission without distortion
● power monitoring,medical equipment isolation barrier
● overcome inverter,large motors,power equipment, acquisition systems,DCS and PLC Field interference
General Description:
     Shenzhen Jie Shengda Technology DIN35 3x3 MI 4-20mA passive three-channel high-precision analog signal isolation transmitter  is a signal conditioner with electrical insulation between input and output. It can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、PLC、PC or DCS. The product is isolated between power supply,input and output, the isolated voltage between them is up to 3000VDC .It is widely used in the industrial measurement systems,power monitoring ,medical electronic equipment,analog 4~20mA signal isolation and acquisition, long-distance signal transmission without distortion ,etc.The analog signal isolation transmitter adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift. Suitable for using in vibration, damp industrial field, the standard DIN35mm rail mounting for easy user installation.

Detailed technical data Download :http://www.jsd-iae.com/down/2013108141913735.pdf

Isolator Selection example :

Example 1: Input 1:4-20mA; Output 1:4-20mA; Input 2:4-20mA; Output 2:4-20mA; Input 3:4-20mA; output 3:4-20mA ; Model : DIN35 3x3 MI 4-20mA

Example 2: Input 1:0-20mA; Output 1:0-20mA; Input 2:0-20mA; Output 2:0-20mA; Input 3:0-20mA; output 3:0-20mA ; Model : DIN35 3x3 MI 0-20mA

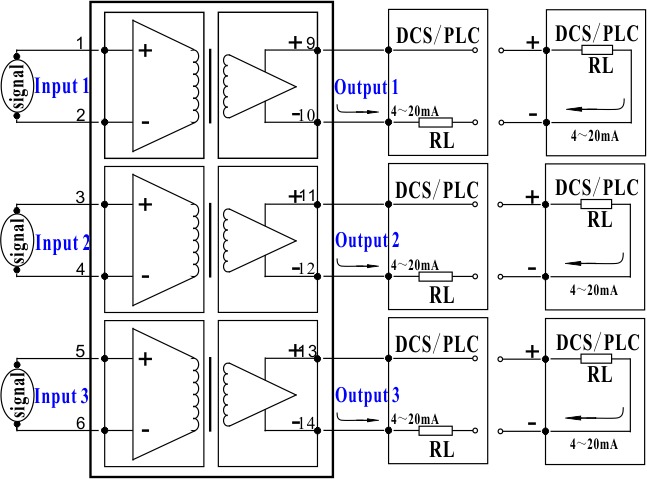

Application Wiring diagram:
