1000VDC isolated®ulated positive and negative dual voltage output DC-DC converter IAseries
2012-6-19 14:21:01 Clicks:2291
| Product Category: |
DC-DC converter |
| Product Description: |
|
| Model: |
IAxxxxS-xW |
Download: |
|
| Input voltage: |
5V/9V/12V/15V/24V |
Output Voltage: |
±5V/±9V/±12V/±15V/±24V |
| Isolation Voltage: |
1000VDC |
Output Power: |
0.1-2W |
| Product accuracy: |
±2% |
Size: |
27.4*8.8*11.0 |
| Channel Numbers : |
1路输入双路输出 |
Package : |
SIP10 |
|
|
1000VDC isolated®ulated positive and negative dual voltage output DC-DC converter IAseries
APPLICATIONS
IAxxxxS-xW Series are specially designed for applications where a single power supply is highly isolated from the
input power supply in a distributed power supply system on a circuit board.
These products apply to
1, Where switching power supply,regulated power supply voltage conversion and distribution power supply.
2, Where security equipment, broadcasting equipment, power supply, isolation and voltage conversion
3, Where the power and ground loop interference suppression
4, Where the voltage of the input power supply is fixed (voltage variation ≤±5%)
5, Where isolation is necessary between input and output (isolation voltage ≤1000VDC);
6, Where the regulation of the output voltage and the output ripple and noise are demanded.
FEATURES
● Small size,low cost
● Low Ripple and good EMC features
● Temperature Range -40°C ~ +85°C
● Continuous short circuit protection
● 1000VDC isolation voltage
● No External Component Required
● Industry Standard Pinout
● RoHS Compliance
● input voltage:5VDC/9VDC/12VDC/15VDC/24VDC
data download:
dimension:

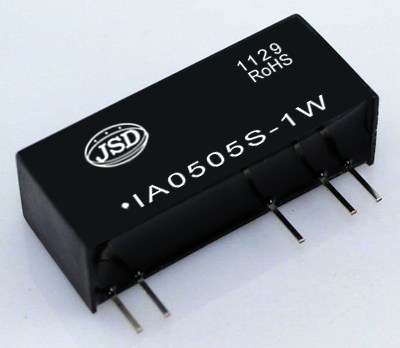

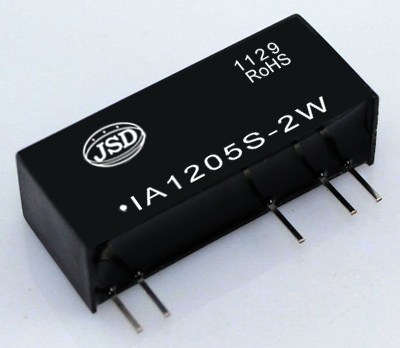

picture:
