1-in-1-out high-voltage(current)signal isolation transmitter
2014-2-19 10:56:42 Clicks:928
| Product Category: |
Isolation transmitter |
| Product Description: |
high-voltage(current) signal isolation transmitter高压信号隔离变送器可把高达2000VDC的直流高压信号转换成标准的模拟量信号 |
| Model: |
JSD TAH-1001 |
Download: |
|
| Input Signal: |
0-2KV/0-1KV/0-20V/0-20A/0-0.2A |
Output signal: |
0-10V/0-5V/4-20mA/0-20mA/1-5V |
| Isolation Voltage: |
3000VDC |
Isolation Type: |
Optical isolation |
| Product accuracy: |
0.1%,0.2%,0.3% |
Size: |
115x100x23mm |
| Channel Numbers: |
1-input-1-output |
Package: |
DIN35mm |
|
|
1-in-1-out high-voltage(current) signal isolation transmitter
Shenzhen Jie Shengda Technology (JSD Technology) JSD TAH-1001series 1-in-1-out high-voltage(current) signal isolation transmitter is a signal transmitter with electrical insulation between input and output. It can receive a variety of analog signal from the field instrument or high-voltage equipment, and transmit a standard output signal or user-specified special signal to the control room、 PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 3000VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment ,analog signal isolation and acquisition etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift. Suitable for using in vibration, damp industrial field, the standard DIN35mm rail mounting for easy user installation.
Features:
◆Thin volume, low-cost ,international standards DIN35mm rail mounting
◆Three-port isolation(between input, output and power supply)
◆Single-channel input single-channel output
◆High accuracy(0.1%, 0.2% F.S, 0.3% F.S)
◆High linearity(0.1% F.S)
◆High isolation voltage(3000VDC/60S)
◆Very low temperature drift(100PPM/℃)
◆Industrial temperature range(-45-+85℃)
◆High reliability(MTBF> 50 Wan hour)
◆5V/12V/15V/24V/9-36VDC and 220VAC power supply
◆International standard signal output(0-5V/4-20mA/0-10V/0-20mA/0-10mA/1-5V/0-3.3V)
◆Standard signal input(0-2000VDC/0-1000VDC/0-500VDC/0-100VDC/0-20ADC/0-10ADC/0-0.2ADC etc.)
Application:
◆DC voltage signal isolation, conversion
◆Analog signal ground interference suppression and analog isolation, acquisition
◆Transform and acquisition high voltage signal
◆Instrumentation and sensor signal transceiver
◆Power isolation and control industrial site
◆Analog signal data isolation, acquisition, conversion, and long-distance transmittion
◆Industrial field signal isolation,conversion and long-distance transmission lossless
◆Power monitoring, medical equipment isolation barrier
◆Overcome inverter, large motors, power equipment, gathering systems, DCS and PLC-site interference

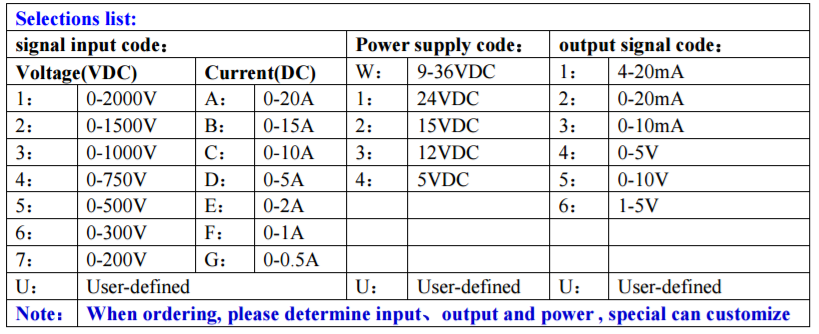

Sections and Definitions:
Selection Example:
Example 1:input:0-1500VDC；output:4-20mA；power supply:24VDC；Model: JSD TAH-1001-111
Example 2:input:0-200VDC；output:0-5V；power supply:15VDC；Model: JSD TAH-1001-624
Example 3:input:0-10ADC；output:4-20mA；power supply:9-36VDC；Model: JSD TAH-1001-CW1
Example 4:input:0-5ADC；output:0-3.3V；power supply:24VDC；Model: JSD TAH-1001-D1U

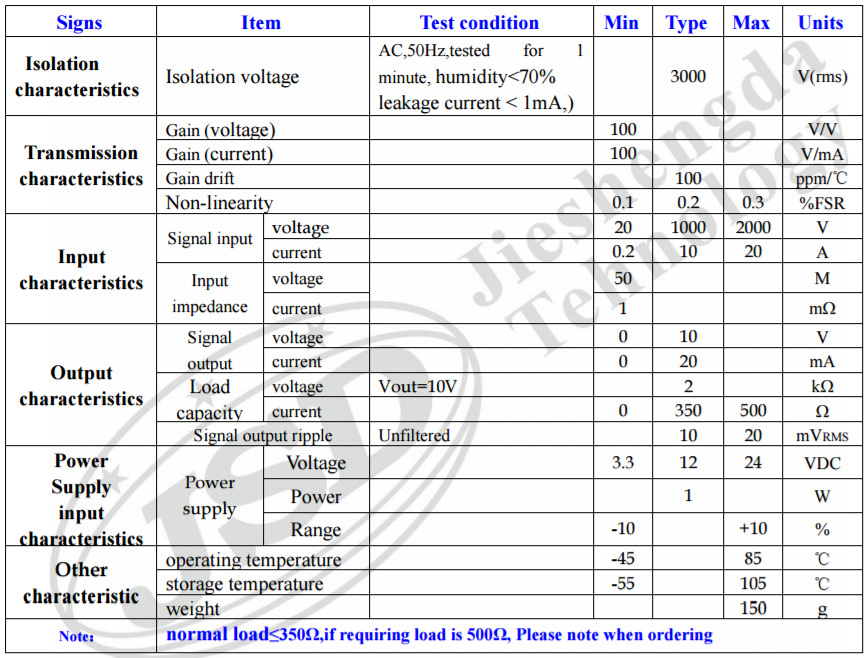

Electrical Characteristics:

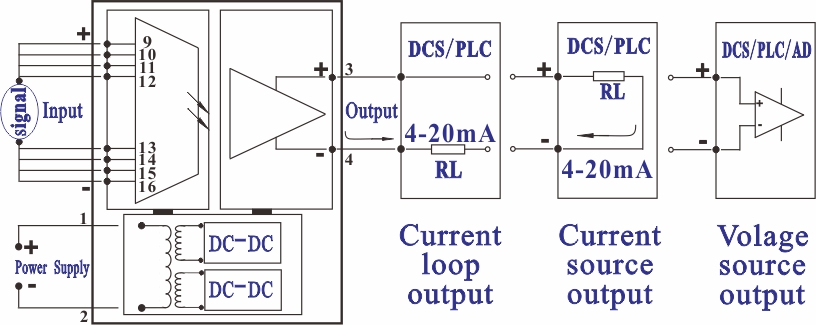

Application Wiring Diagram:
1-in-1-out high-voltage(current) signal isolation transmitter Download: http://www.jsd-iae.com/down/20170617032207.pdf
Isolated Transmitters Download: http://www.jsd-iae.com/Isolation-Transmitter.htm
Isolation amplifier Download: http://www.jsd-iae.com/Isolation-Amplifiers.htm
Data Acquisition Download: http://www.jsd-iae.com/Data-Acquisition.htm
DC-DC Converter Download: http://www.jsd-iae.com/DC-DC-Converter.htm

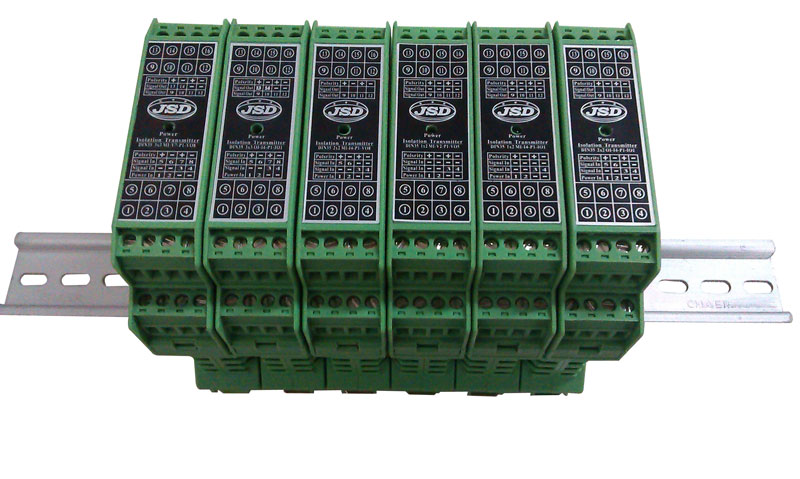

Isolation Transmitter picture:
