1000VDC isolated&unregulated fixed voltage input positive voltage output DC-DC converter BLS/LD series
2012-8-6 13:15:18 Clicks:760
1000VDC isolated&unregulated fixed voltage input positive voltage output DC-DC converter BLS/LD series
FEATURES
● Small size,low cost
● SIPDIP Package
● Low Ripple and good EMC features
● Temperature Range -40°C ~ +85°C
● No Heat Sink Required
● No External Component Required
● Internal SMD construction
● Industry Standard Pinout
● RoHS Compliance
APPLICATIONS
BxxxxLSLD-xW Series are specially designed for applications where a single power supply is highly isolated from the
input power supply in a distributed power supply system on a circuit board.
These products apply to:
1, Where the power supply system distribution , the digital circuit isolation and voltage conversion
2, Where the security equipment, broadcasting equipment, power supply, isolation and voltage conversion
3, Where the voltage of the input power supply is fixed (voltage variation ≤±10%)
4, Where isolation is necessary between input and output (isolation voltage ≤1000VDC);
5, Where the regulation of the output voltage and the output ripple and noise are demanded.
data download:
Dimension diagram and PCB layout diagram

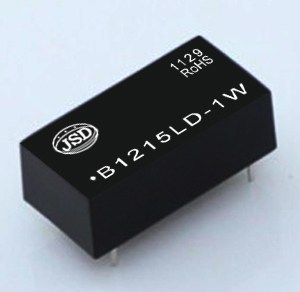

picture:
