1-in-1-out analog two-wire 4-20mA isolation transmitter(output loop) application wiring diagram

2013-9-28 10:33:47  Clicks:1046

1-in-1-out analog two-wire 4-20mA output loop isolation transmitter application wiring diagram
    Jie Shengda Technology DIN35 1x1 OI 4-20mA-P series isolation amplifier is a two-wire 4-20mA current isolation conditioner module, and the isolation conditioner module belongs JSD MI 4-20mA series isolation amplifiers, But this product adopts optical isolation technology,it has better anti-jamming capability than magnetic isolation technology. The isolation conditioner IC internal has current signal modulation and demodulation circuit, coupled converter circuits and so on. The isolation conditioner IC input voltage reaches the wide range (7.5~32V) by small input equivalent resistance to meet the user does not need an external power supply to realize long-distance signal, lossless transmission. The isolation conditioner IC output is design for 24VDC sampling resistor (or load resistance) in series with the sampling resistor (or load resistance) in series with the two-wire power supply circuit. to match with the current popular analog input interface board (PC), PLC, DCS, PC or other Instrumentations analog input port. its internal ceramic substrates, printed resistor technology and new isolation technologies achieve the products’ high isolation voltage (3000VDC)and wide industrial temperature range, can work in humidity, vibration, harsh environment to meet the requirements of industrial environments.

The signal isolation transmitter model is: DIN35 1x1 OI 4-20mA-P
1-in-1-out two-wire 4-20mA output loop isolated transmitter technical data download:
2-in-2-out two-wire 4-20mA output loop isolated transmitter technical data download:

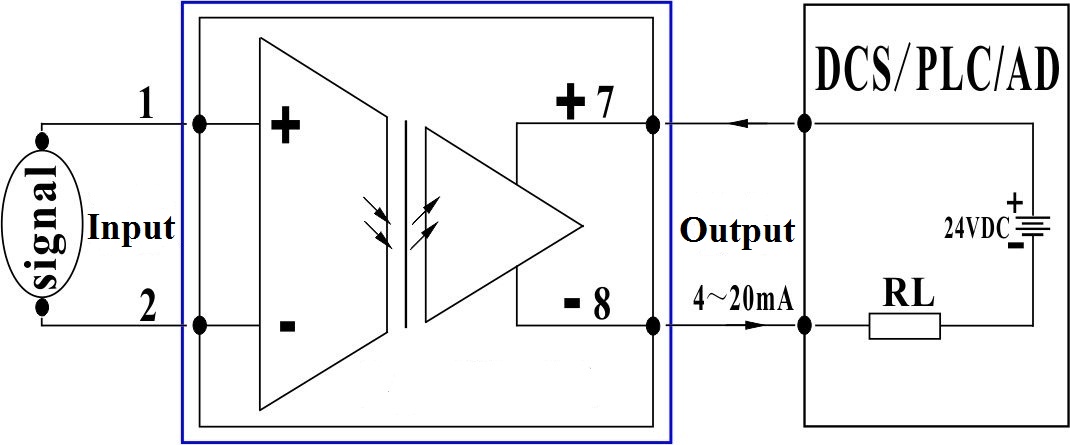

Isolation transmitter application wiring diagram :
