JSD signal isolation transmitter used in environmental protection industry

Jie Sheng Da Technology Active isolation transmitter used in environmental protection industry

Jie Sheng Da Technology analog signal isolation transmitter is widely used in environmental protection cause of all mankind, "Jie Sheng Man" for all mankind to do their environmental responsibility and a heart to support the cause of environmental protection concerns all of humanity should continue to work together efforts, "McNair Sheng Man" will continue its efforts continue to focus on environmental protection cause of all mankind, for the environmental cause of human building blocks.

Jie Sheng Da Technology isolation transmitter is the flow sensors, pressure sensors, wind sensors and other sensors output standard signal (eg 4-20mA/0-20mA/0-10V/0-5V/1-5V convert acquisition systems, control systems and PC control system interface analog signals that can be matched.

Applied to all kinds of environmental protection industry isolated transmitter product has the following characteristics:
(A) an inlet a (single input single output/single input single output) Analog signal isolation transmitter (magnetic electrically isolated series)

Product Features:
◆ Small size, low cost, standard rail mounting DIN35mm
◆ three-port isolation (input, output, operating supply isolated from each other)
◆ High level (0.1% F.S, 0.2% F.S)
◆ High linearity (0.1% F.S)
◆ High isolation voltage (2500VDC/60S)
◆ Very low temperature drift (35PPM / ℃)
◆ Industrial temperature range (-45 ~ +85 ℃)
◆ products are reliable (MTBF> 50 Wan hour)
◆ Power supply (5VDC/12VDC/15VDC/24VDC single power supply, and other options)
◆ international standard signal (0~5V/0 ~ 10V / 0 ~ ± 10V / 4 ~ 20mA / 0 ~ ± 20mA, etc. Multiple choice)

GENERAL DESCRIPTION:
Shenzhen Jie Sheng Da Technology (JSD Technology) DIN35 1x1 MI active single-channel high precision analog signal isolation transmitter is a signal conditioner with electrical insulation between input and output. It can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.  Suitable for using in vibration, damp industrial field, the standard DIN35mm rail mounting for easy user installation.

Application:
◆ DC current / voltage signal isolation, conversion and amplification
◆ industrial field signal isolation and long distance transmission without distortion
◆ analog signal ground interference suppression and analog isolation, collecting
◆ 4 ~ 20mA / 0 ~ 20mA / 0 ~ 5V / 0 ~ 10V sensor signal isolation and conversion function
◆ instrumentation and sensor signal transceiver
◆ power isolation and control of industrial site
◆ power monitoring, medical equipment isolation barrier
Technical data: http://www.jsd-iae.com/down/20127903535427.pdf

(2) one in one out (1-input-1-output) Analog signal isolation transmitter (opto-isolated series)
 Features:
● thin volume, low-cost international standards DIN35mm rail mounting
● three-port isolation (input, output, operating supply isolated from each other)
● High accuracy (0.1% F.S, 0.2% F.S)
● Full scale range (<0.2% F.S)
● High isolation voltage (2500VDC/60S)
● Very low temperature drift (100PPM / ℃)
● industrial temperature range (-45 ~ +85 ℃)
● product performance and reliable (MTBF> 50 Wan hour)
● Operating power supply (5VDC/12VDC/15VDC/24VDC multiple options)
● International standard signal selection (0 ~ 5V / 0 ~ 10V / 1 ~ 5V / 4 ~ 20mA multiple choice)

Application:
● DC current / voltage signal isolation, conversion and amplification
● industrial field signal isolation and long distance transmission without distortion
● Analog signal ground interference suppression and analog isolation, acquisition, conversion, and remote
● 4 ~ 20mA / 0 ~ 20mA / 0 ~ 5V / 0 ~ 10V sensor signal isolation, transformation and remote
● instrumentation and sensor signal transceiver
● power isolation monitoring industrial site
● power monitoring, medical equipment isolation barrier
● overcome interference between instrumentation equipment
 Single entry / double out analog voltage (current) signal isolation transmitter unidirectional

GENERAL DESCRIPTION:
Shenzhen Jie Sheng Technology (JSD Technology) DIN35 1x1 OI active single input single output analog unidirectional signal isolation transmitter

 (3) one in two out (1-input-2-output) Analog signal isolation transmitter (magnetic electrically isolated series)
 Product Features:
◆ thin volume, low-cost international standards DIN35mm rail mounting
◆ three-port isolation (input, output, and the supply of mutual isolation)
◆ Single input dual-output, mutual isolation between channels
◆ The product has a signal distribution function (one input, two outputs simultaneously)
◆ High level (0.1% F.S)
◆ High linearity (0.1% F.S)
◆ High isolation voltage (2500VDC/60S)
◆ Very low temperature drift (35PPM/℃)
◆ Industrial temperature range (-45~+85 ℃)
◆ products are reliable (MTBF> 50 Wan hour)
◆ Power supply (5VDC/12VDC/15VDC/24VDC single power supply, and other options)
◆ international standard signal input and output (0~5V/0~10V/1~5V/4~20mA/0~20mA/0~±5V/0~±10V/ 0~±10mA/0~±100mV/0~± 20mA, etc. Multiple choice)

GENERAL DESCRIPTION:
     Shenzhen JIE Sheng Da Technology DIN35 1x2 MI active high precision isolation transmitter is a signal conditioner with electrical insulation between input and output. It can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.  Suitable for using in vibration, damp industrial field, the standard DIN35mm rail mounting for easy user installation.

Application:
◆ DC current / voltage signal isolation, conversion and amplification
◆ industrial field signal isolation and long distance transmission without distortion
◆ analog signal ground interference suppression and analog isolation, collecting
◆ 4 ~ 20mA / 0 ~ 20mA / 0 ~ 5V / 0 ~ 10V sensor signal isolation and conversion, and can achieve a forward two, into three, two into two, three into three isolated signal functions.
◆ instrumentation and sensor signal transceiver
◆ power isolation and control of industrial site
◆ power monitoring, medical equipment isolation barrier
Technical details: http://www.jsd-iae.com/down/20127111114274.pdf

(4) one in two out(1-input-2-output) Analog signal isolation transmitter (opto-isolated series)

Features:
● thin volume, low-cost international standards DIN35mm rail mounting
● four-terminal isolation (input, output, power supply and mutual isolation between channels)
● High accuracy (0.1% F.S, 0.2% F.S)
● Full scale range (<0.2% F.S)
● High isolation voltage (2500VDC/60S)
● Very low temperature drift (100PPM/℃)
● industrial temperature range (-45~+85 ℃)
● product performance and reliable (MTBF>50 Wan hour)
● Operating power supply (5VDC/12VDC/15VDC/24VDC multiple options)
● International standard signal selection (0~5V/0~10V/1~5V /4~20mA multiple choice)
Application:
● DC current/voltage signal isolation, conversion and amplification
● industrial field signal isolation and long distance transmission without distortion
● Analog signal ground interference suppression and analog isolation, acquisition, conversion, and remote
● 4~20mA/0~20mA/0~5V/0~10V sensor signal isolation, transformation and remote
● instrumentation and sensor signal transceiver
● power isolation monitoring industrial site
● power monitoring, medical equipment isolation barrier
● overcome interference between instrumentation equipment
● Single entry/double out analog voltage (current) signal isolation transmitter unidirectional

GENERAL DESCRIPTION:
Shenzhen JIE Sheng da Technology DIN35 1x2 OI active 1-in-2-out analog unidirectional signal isolation transmitter is a signal conditioner with electrical insulation between input and output, it can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the power isolation, monitoring and control of industrial site, power monitoring, medical electronic equipment, analog signal isolation and acquisition etc. Adopting optical isolation technology, compared with the electromagnetism isolation transmitter has a stronger anti-EMC electromagnetic interference ,it is available to keep free gain adjustment and zero adjustment ,low temperature drift and good linearity, suitable for using vibration, damp industrial field, the international standard DIN35mm rail mounting, user-friendly installation.

Technical data: http://www.jsd-iae.com/down/20127111114274.pdf

 (5) one in three out(1-input-3-output) Analog signal isolation transmitter (opto-isolated series)
Product Features:
● thin volume, low-cost international standards DIN35mm rail mounting
● three-port isolation (input, output, and the supply of mutual isolation)
● Single-channel input and three output channels, mutual isolation between channels
● Accuracy class (0.1% F.S; 0.2% F.S)
● Full scale range (0.2% F.S)
● High isolation voltage (2500VDC/60S)
● Temperature Drift (100PPM / ℃)
● industrial temperature range (-45 ~ +85 ℃)
● product performance and reliable (MTBF> 50 Wan hour)
● Power Supply (5VDC/12VDC/15VDC/24VDC single power supply, and other options)
● International standard signal input and output (0~5V/0~10V/1~5V/4~20mA/0~20mA, etc. Multiple choice)

GENERAL DESCRIPTION:
     Shenzhen Jie Sheng Da Technology (JSD Technology) DIN35 1x3 OI series active 1-input-3-output signal isolation transmitter is a signal conditioner with electrical insulation between input and output, it can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the power isolation, monitoring and control of industrial site, power monitoring, medical electronic equipment, analog signal isolation and acquisition etc. Adopting optical isolation technology, compared with the electromagnetism isolation transmitter has a stronger anti-EMC electromagnetic interference ,it is available to keep free gain adjustment and zero adjustment ,low temperature drift and good linearity, suitable for using vibration, damp industrial field, the international standard DIN35mm rail mounting, user-friendly installation.

Technical details: http://www.jsd-iae.com/down/20127111532251.pdf

 (6) one in three out(1-input-3-output) Analog signal isolation transmitter (magnetic electrically isolated series)
Product Features:
◆ thin volume, low-cost international standards DIN35mm rail mounting
◆ three-port isolation (input, output, and the supply of mutual isolation)
◆ single input and three output channels, mutual isolation between channels
◆ The product has a signal distribution function (one input three output)
◆ High level (0.1%, 0.2% F.S)
◆ High linearity (0.1% F.S)
◆ High isolation voltage (2500VDC/60S)
◆ Very low temperature drift (35PPM/℃)
◆ Industrial temperature range (-45~+85℃)
◆ products are reliable (MTBF>50 Wan hour)
◆ Power supply (5VDC/12VDC/15VDC/24VDC single power supply, and other options)
◆ international standard signal input and output (0~5V/0~10V/1~5V/4~20mA/0~20mA/0~±5V/0~±10V/0~± 10mA/0~± 100mV/0~±20mA, etc. Multiple choice)
 GENERAL DESCRIPTION:
     Shenzhen Jie Sheng Da Technology (JSD Technology) DIN35 1X3 MI active single-input dual-output high-precision analog signal isolation transmitter is a signal conditioner with electrical insulation between input and output. It can receive a variety of analog signal from the field instrument, and transmit a standard output signal or user-specified special signal to the control room、PLC、PC or DCS. The product is isolated between power supply, input and output, the isolated voltage between them is up to 2500VDC .It is widely used in the industrial measurement systems, medical electronic equipment, electrical equipment etc. Adopting high efficiency electromagnetism isolation technology to achieve signal isolation, it is available to keep high output accuracy, good linearity and low temperature drift.  Suitable for using in vibration, damp industrial field, the standard DIN35mm rail mounting for easy user installation.

Application:
◆ DC current/voltage signal isolation, conversion and amplification
◆ industrial field signal isolation and long distance transmission without distortion
◆ analog signal ground interference suppression and analog isolation, collecting
◆ 4~20mA/0~20mA/0~5V/0~10V sensor signal isolation and conversion, and can achieve signal one in two out, two in two out, three in three out,one in four out isolated signal functions.
◆ instrumentation and sensor signal transceiver
◆ power isolation and control of industrial site
◆ power monitoring, medical equipment isolation barrier
Technical details: http://www.jsd-iae.com/down/201278233925608.pdf

Signal isolation transmitter Electrical Characteristics：

Signs	Item			Test condition	Min	Type	Max	Units
Isolation characteristics	Isolation voltage			AC,50Hz,tested for 1 minute, humidity<70% leakage current < 1mA,)		2500		V(rms)
Transmission characteristics	Gain					1		V/V
	Gain drift					100		ppm/℃
	Non-linearity					0.1	0.2	%FSR
Input characteristics	Input offset voltage					2	5	mV
	Input impedance		voltage		0.3	1		M
			current			250	1000	Ω
Output characteristics	Signal output		voltage		0		10	V
			current		0		20	mA
	Load capacity		voltage	Vout=10V		2		kΩ
			current		0	350	650	Ω
	Frequency Response			-3DB		1		KHz
	Response Time					≤ 1		mS
	Signal output ripple			Unfiltered		10	20	mVRMS
	Signal voltage drift			-45~+85℃operating temperature			0.2	mV/℃
Power Supply input characteristics	Power supply	voltage			3.3	12	24	VDC
		Power loss				0.5	1	W
		Range			-10		+10	%
	operating temp				-45		85	℃
	storage  temp				-55		105	℃
	weight					60		g
Note :	normal load≤350Ω,if requiring load is 650Ω, Please note when ordering



Selection parameter list:

Product Selection Parameter List:
DIN35		1x3	OI	V(I)x	Px	V(I)Ox		Detailed description
Package code								Standard DIN 35mm Package
Channel code								1-input-3-putput
Isolation code								optical isolation
signal input code：				Power supply code：			output signal code：
Voltage(VDC)	Current(mA)			Power(VDC)			Current (mA)		Voltage(VDC)
V1：0~5V	I1：0~1mA			P1：24VDC			IO1：4~20mA		VO4：0~5V
V2：0~10V	I2：0~10mA			P2：15VDC			IO2：0~20mA		VO5：0~10V
V3：0~75mV	I3：0~20mA			P3：12VDC			IO3：-----------		VO6：1~5V
V4：0~2.5V	I4：4~20mA			P4：5VDC
V(I)ud：User-defined				Pud：User-defined			V(I)Oud：User-defined
Note1：When ordering ,please determine input、output and power , special can customize

Selection example:
Example 1: Input channel1:4-20mA; Output Channel 1:4-20mA; Output Channel 2:4-20mA; Output Channel 3:4-20mA;
Power supply: 24VDC; Product Type: DIN35 1x3 OI-I4-P1-IO1

Example 2: Input channel 1:0-10VDC; Output Channel 1:0-5VDC; Output Channel 2:0-5VDC; Output Channel 3:0-5VDC;
Power supply: 12VDC; Product Type: DIN35 1x3 OI-V2-P3-VO4

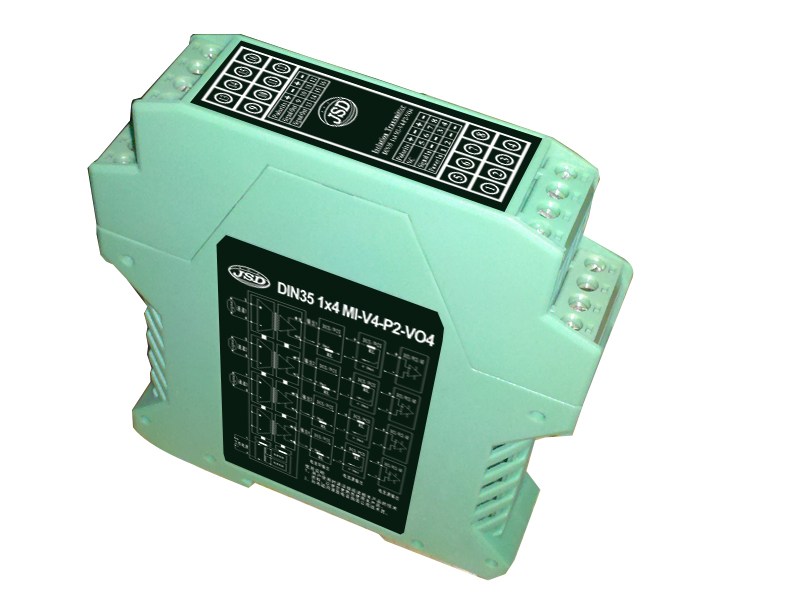

Signal isolation transmitter picture:
